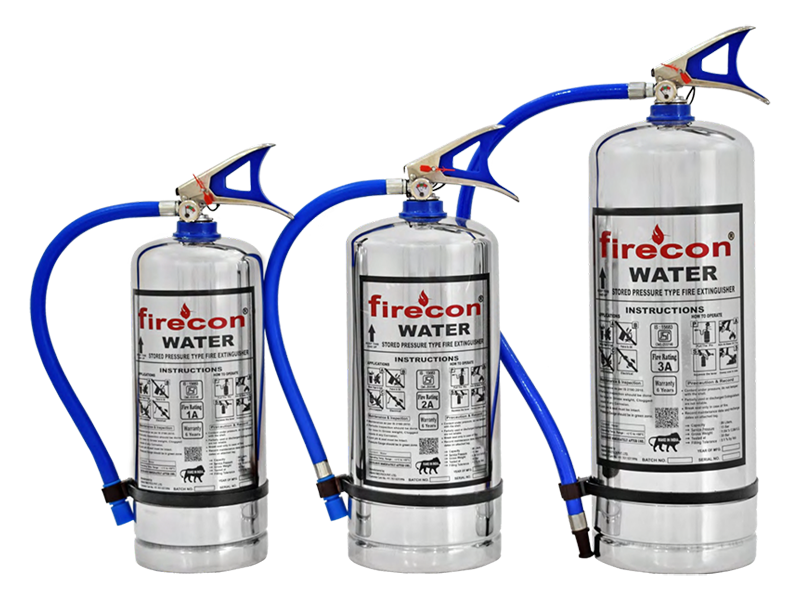

WATER STORED PRESSURE FIRE EXTINGUISHERS

Water fire extinguishers have a red label and a class A rating.Stored pressure extinguishers have the compressed nitrogen gas that is used as the propellant for the dry chemical agent stored in the same canister as the dry chemical. Side cartridge operated units store the dry chemical in a non-pressurized container and the compressed nitrogen gas in a separate cartridge

Capacity	4 Liters 6 Liters 9 Liters
Extinguishing Agent	WATER
Propellant	DRY NITROGEN
Gross Weight (kgs)(Approx)	6.02-6.44 8.384-9.124 11.954-12.884
Service Pressure	15 bar
Operating Tem. Range	+5°C to +55°C
Tested Pressure @	35 Bar
Fire Rating	1A 2A 3A
BurstPressure	>100 Bar
Design Pressure	>50 Bar
Hose Pipe Length	450mm 450mm 650mm
Discharge Time(Sec.)	18-20 20-24 30-32
Average Range of Throw (Mtr.)	>3.5 >3.5 >4
