BC CARTRIDGE OPERATED FIRE EXTINGUISHERS

BC CARTRIDGE OPERATED FIRE EXTINGUISHERS

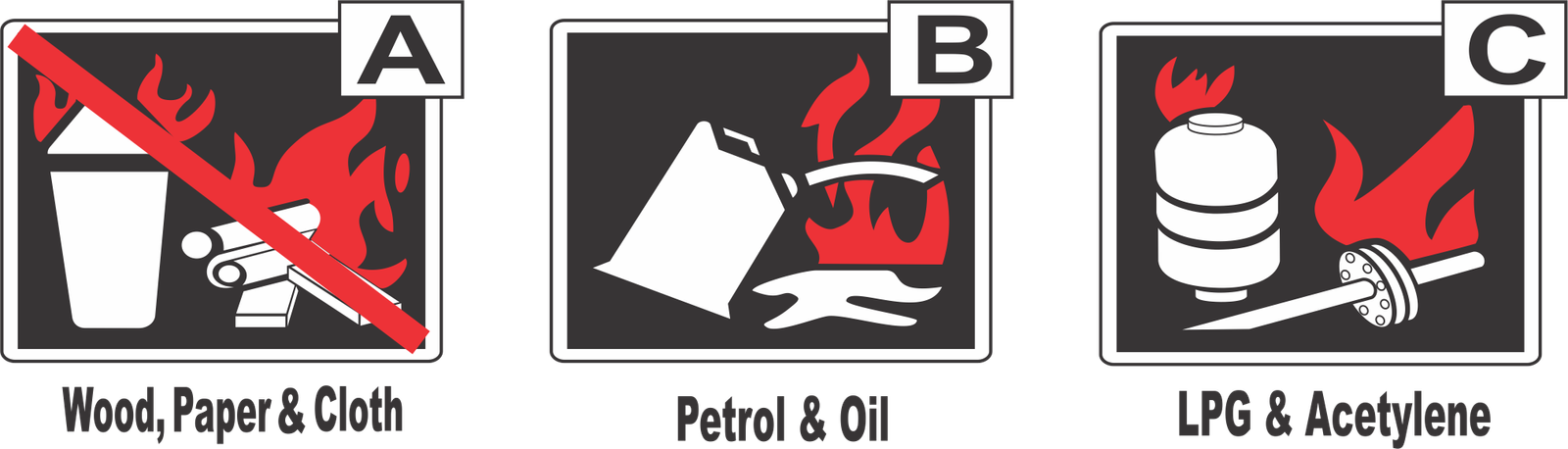

BC Powder Type variant contains sodium bicarbonate powder for fighting against light and ordinary fire hazard. It is effective on Class B fires (flammable liquids) and Class C fires (flammable gases). Extinguishers uses cooling and blanketing effect to slow down fire and eventually extinguishing the fire.BC rating is suitable for use with fires involving flammable liquids and energized electrical equipment. An extinguisher with an ABC rating is suitable for use with fires involving ordinary combustibles, flammable liquids and energized electrical equipment.

Capacity 4kg 6kg 9kg
Extinguishing Agent SBC & PBC*
Weight of Cartridge(grms) 120 120 180
Gross Weight (kgs)(Approx) 8.32-8.48 10.72-10.88 14.90-15.10
Service Pressure 15 bar
Operating Tem. Range -30°C to +55°C
Tested Pressure @ 35 Bar
Fire Rating 21B 34B 55B
BurstPressure >100 Bar
Design Pressure >50 Bar
Hose Pipe Length 450mm 450mm 650mm
Discharge Time(Sec.) 16-18 18-22 22-28
Average Range of Throw (Mtr.) >3.5 >3.5 >3.5
